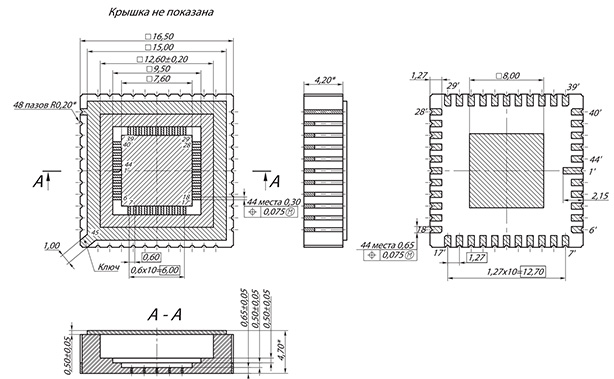

QLCC 44/44

Technical Specifications

Value

Ceramics Trademark

ВК-94-1

Resistance  of Current-Carrying Conductors R_con, Ohm, not more than

0,7

Insulation Resistance R_ins, Ohm, not less than

10⁹ at U_con = 100 V

Inductance of Current-Carrying Conductors L_con,  nh, not more than

5,0

Capacity of Current-Carrying Elements C_con, pF, not more than

0,25

Dielectric Permittivity ε, not more than

10,3 for 10 GHz

Loss-Angle Tangent  tg  δ 10^-3, not more than

1,5·10³ for 10 GHz

Thermal Linear Expansion Coefficient, (TLEC), ºС^-1[at  t = (20 ÷ 200) ºС]

6,0·10^-6

Thermal Conductivity, W/m K

13,4

Operating Temperature Range  ºС

from – 60 to +155

Operating Pressure range, Pa

0,67·10³ ÷ 2,92·10⁵

Overall Dimensions, Length x Width x Height, mm

16,5 х 16,5 х 4,7

Access Hole Size, mm

9,5 x 9,5

Access Hole Depth, mm

3,55

Wiring Pad Size, mm

7,6 х 7,6

Wiring Pad Number

44

Pin Pad Number

44

Coating of  Current-Carrying Elements

Au

Hermetic Capping Technique

Soldering or Adhesive

Weight incl. cap, g, not more than

2,7

Wiring Pad Number

1-39

41-44

Pin Pad Number

1’-39’

41’-44’

Other Electrical Wirings

40, 40’,Soldering point and collar
