DLCC 2/2-1

Technical Specification

ValueЗначение

Ceramics Trademark

ВК-94-2

Resistance of Current-Carrying Conductors, R_con Ohm, not more than

0,05

Insulation Resistance R_ins, Ohm, not less than

10⁹ at U_con = 100 V

Inductance of Current-Carrying Elements L_пр, nh, not more than

2

Capacity of Current-Carrying Elements C_con,pF not more than

0,1

Dielectric Permittivity ε, not more than

10,3 for 10 GHz

Loss-Angle Tangent tg δ 10^-3, not more than

0,6/1,5 for 1MHz/10GHz

Thermal Linear Expansion Coefficient (TLEC), ºС^-1[at  t = (20 ÷ 200) ºС]

5,7·10^-6

Thermal Conductivity, W/m K

26,0

Operating Temperature Range ºС

from – 60 to +155

Operating Pressure Range, Pa

0,67·10³ ÷ 2,92·10⁵

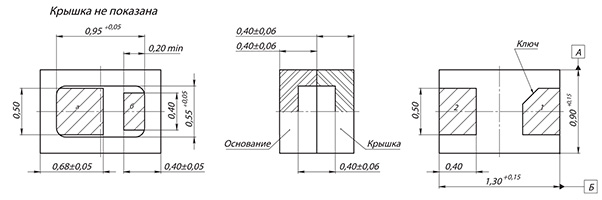

Overall Dimensions, Length x Width x Height, mm

1,3 х 0,9 х 0,8

Access Hole Size, mm

0,95 x 0,55

Access Hole Depth, mm

0,4

Wiring Pad Size, mm

0,5 х 0,5

Wiring Pad Number

2

Pin Pad Number

2

Coating of Current-Carrying Elements

Au

Hermetic Capping Technique

Adhesive

Weight incl. Cap, g, not more than

0,005
