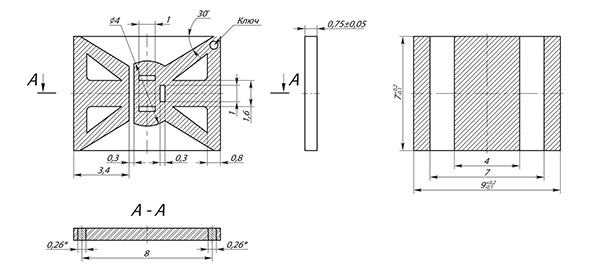

CLCC 2/2-1

Technical Specifications

Value

Ceramics Trademark

ВК-94-1

ВК-94-2

Resistance  of Current-Carrying Conductors R_con, Ohm, not more than

0,1

Insulation Resistance R_ins, Ohm, not less than

10⁹ at Ucon = 100 В

Thermal Linear Expansion Coefficient, (TLEC), ºС^-1[at  t = (20 ÷ 200) ºС]

6,0·10^-6

5,7·10^-6

Thermal Conductivity, W/m K

13,4

26,0

Operating Temperature Range  ºС

from – 60 to +155

Operating Pressure range, Pa

0,67·10³ ÷ 2,92·10⁵

Overall Dimensions, Length x Width x Height, mm

9,0 х 7,0 х 0,75

Wiring Pad Size, mm

1,5 х 1,5

Wiring Pad Number

2

Pin Pad Number

2

Coating of  Current-Carrying Elements

Au or Ag

Weight, g, not more than

0,2
